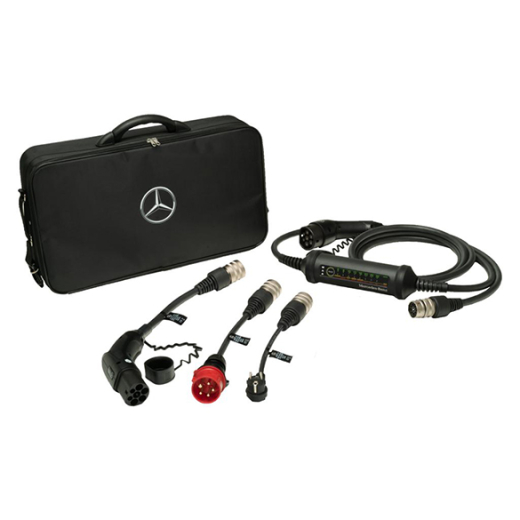

Flexibles Laflexible charging system EU set 32A/3-phase genuine Mercedes-Benz

• High quality Mercedes-Benz design
• Charging power of up to 22kW
• simple and uncomplicated handling

The genuine Mercedes-Benz flexible charging system is a mobile charging solution with which you can charge with up to 22kW. In addition, the adapter separation point enables flexible adaptation to any charging option. Whether at home, on the go or abroad, the flexible charging system guarantees safe and flexible charging for your vehicle.

details

• Charging with up to 22kW (depending on the existing power connection)
• Adapter separation point - individual adaptation to the existing charging options
• Permanently connected type 2 plug (vehicle side)
• Automatic adapter detection and setting of the charging power
• Individually adjustable charging power
• Safe loading
• More order in the trunk

safety

• Integrated residual current circuit breaker type A (AC 30mA with protective conductor monitoring) and DC residual current detection (RCD
  DC 6mA)
• Integrated temperature sensors in all household adapters
• Drive-over-safe control unit (up to 2 tons)
• Waterproof (IP67)
• Operating temperature from -30 ° C to +50 ° C

charging options

• Industrial socket (CEE32 / 3-phase)
• Household socket (adapter type E / F)
• Public charging stations / wall boxes (adapter type 2)

height and weight

• Bag: 585 x 380 x 171 (l / w / h in mm)
• Control unit: diameter 7 cm, length 22.5 cm
• length: total system approx. 5 m
• Vehicle side to control unit 3.1 m
• Adapter side to control unit 1.4 m
• Adapter approx. 30 cm
• Weight of the charging system including cable: 4.2 kg
