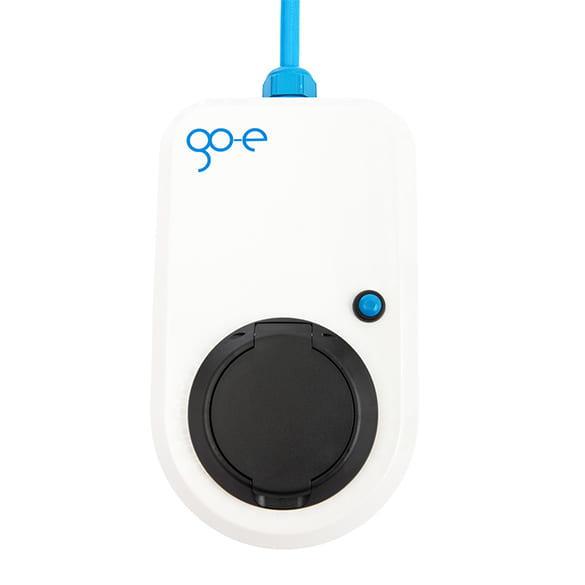

go-eCharger HOMEfix Wallbox 22 kW

• Max. charging power of 22 kW
• Compact wallbox
• Unbeatable price-performance ratio

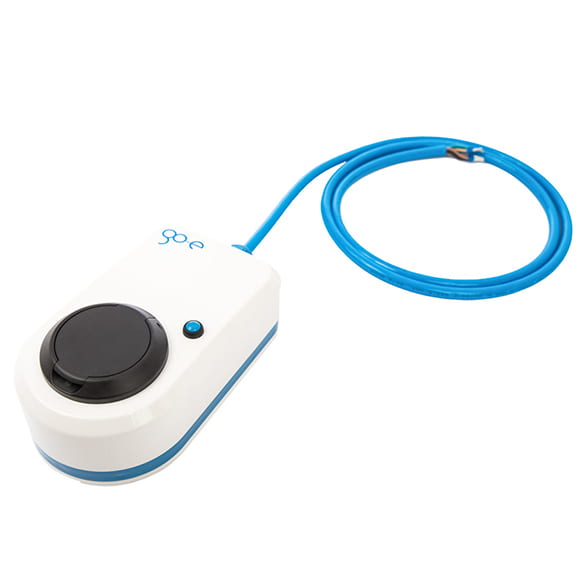

The go-eCharger HOMEfix 22 kW is a charging box with the highest level of performance at an unbeatable price-performance ratio. It is suitable for garages and outdoor parking areas, e.g. in front of residential buildings as well as companies. The charging station has a 2-metre connection cable for permanent connection to a power distribution box. Unlike the go-eCharger HOME+, the charger does not have a plug and is therefore not mobile. The clever solution for all those who need a smart home charging station for pure wall installation.

Productdetails:

• max. charging power of 22 kW
• compact wallbox
• unbeatable price-performance ratio

• Product specifications:

  • Dimensions: approx. 15 x 25 x 9 cm
  • Weight: approx. 2.47 kg
  • Rated voltage: 230 V (single-phase) / 400 V (three-phase)

• Charging power:

  • Maximum charging power: 22 kW (32 A 3-phase)
  • Ampere and status display: Readable via LED ring and app
  • Setting the charging power: Via push button and app

• Safety functions:

  • Anti-theft device: Locking of the charging cable
  • RFID access control: One taught-in RFID chip included
  • Input voltage: Phase and voltage check
  • Current sensor: 3-phase

• App:

  • Can be used locally (WLAN hotspot) or worldwide (via home WLAN)
  • Charge setting / monitoring
  • Start / stop function
  • Charge timer

• Access management (RFID / App)

  • RFID card management
  • Cable Lock Unlock function
  • Electricity meter (total kWh and per RFID card)
  • Electricity exchange connection with intelligent charging management
  • Updateable for later functions (Smart-Home)
  • LED adjustment
  • Management of charging levels via hardware button
