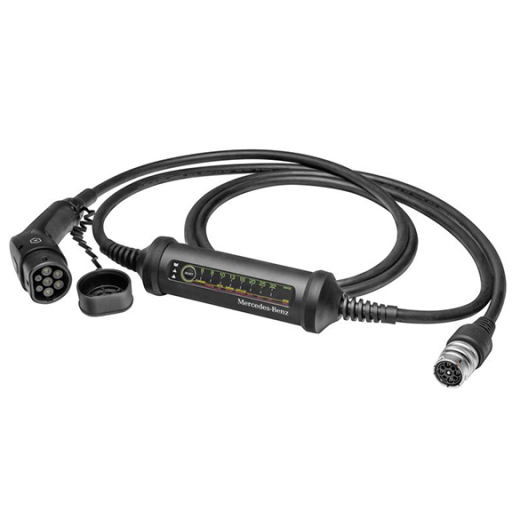

Flexible charging system control unit up to 22 kW Genuine Mercedes-Benz

• Charging with up to 22 kW
• Safe charging
• More order in the trunk

The Genuine Mercedes-Benz charging system is a mobile charging solution that allows you to charge your vehicle with up to 22 kW. The adapter separation point allows flexible adaptation to any charging option, whether industrial socket, household socket or public charging station. You can find the matching complete set here.

Product details:

• Charging with up to 22kW
• Adapter separation point - individual adaptation to the existing charging possibilities
• Permanently connected Type2 plug
• Automatic adapter recognition and adjustment of charging power
• Individually adjustable charging power
• Safe charging
• More order in the trunk

Safety:

• Integrated type A residual current device (AC 30mA with protective conductor monitoring) and DC residual current detection (RCD
• DC 6mA)
• Integrated temperature sensors in all household adapters
• Control unit resistant to being driven over (up to 2 tons)
• Waterproof (IP67)
• Operating temperature from -30 °C to +50 °C

Size and weight:

• Bag: 585 x 380 x 171 mm
• Control unit: 70 x 225 mm
• Cable length: total system approx. 5 m, vehicle side to control unit 3.1 m, adapter side to control unit 1.4 m, adapter approx.
• 30 cm
• Control unit: diameter 7 cm, length 22.5 cm
• Weight charging system incl. cable: 4.2 kg
