Articlenumber: 15800

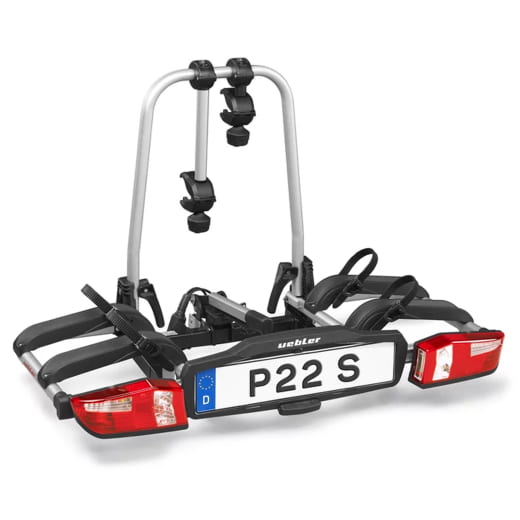

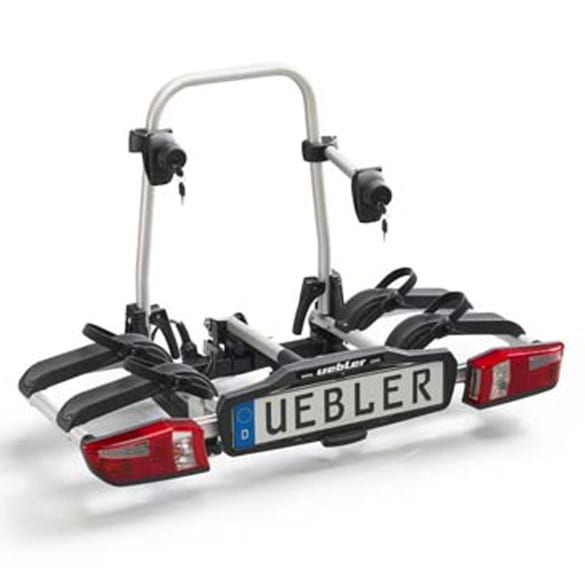

Uebler P22 S Bicycle carrier trailer coupling 2 bikes

685,00 €

incl. VAT, plus deliverycost2
Currently unavailable
Payment at Kunzmann
add to basket Notify me

Here you find our privacy protection of kunzmann.de. I agree, that by submitting this request, my contact details will be saved for getting in contact. I can revoke my consent at any time for the future by mail to datenschutz@kunzmann.de.

Notify me Close
Receive notification

Receive a notification as soon as the product is available again

Product description Uebler P22 S Bicycle carrier trailer coupling 2 bikes

Highlights:
  • For up to 2 bikes (expandable to 3)
  • Folds down up to 90 degrees
  • Extra easy & tool-free assembly
Product description:

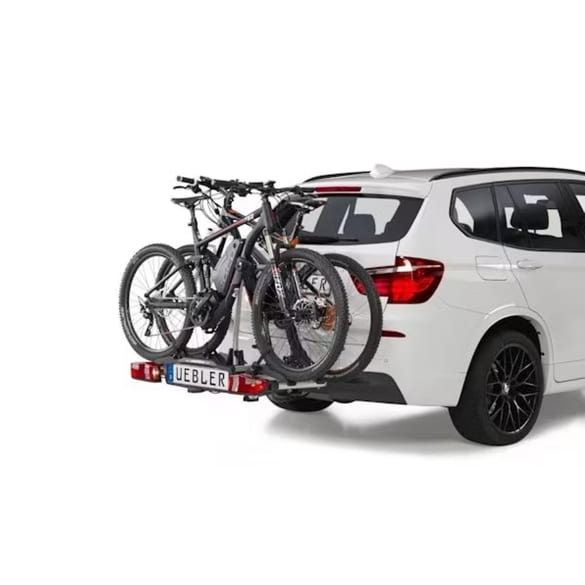

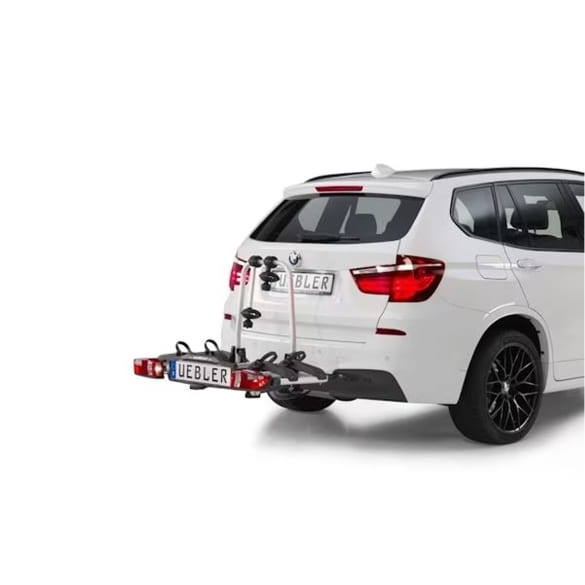

The Uebler P22 S bike carrier is a high-quality towbar carrier made in Germany and impresses with its light weight of just 14kg. The carrier is designed for transporting two bicycles (expandable to 3 bicycles with the extension kit) (up to 60kg total load) and can be fitted to the towbar easily, quickly and without tools using a patented clamping lever lock. To mount the carrier, it is placed in the centre of the ball head of the trailer coupling. Then simply press the clamping lever down and the carrier is fitted. You can also find the assembly instructions under "Documents".

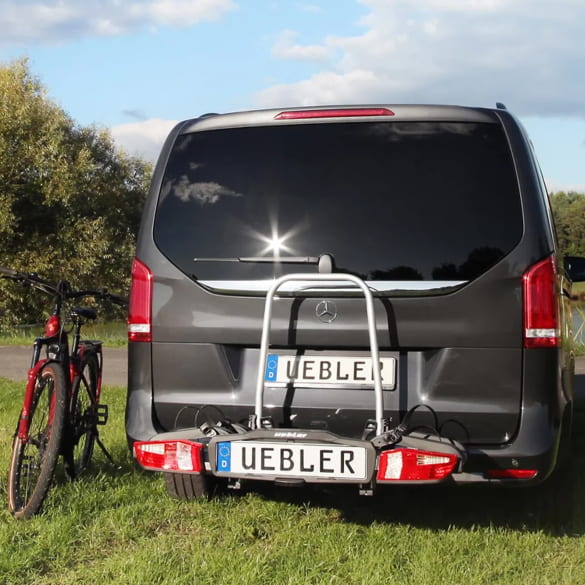

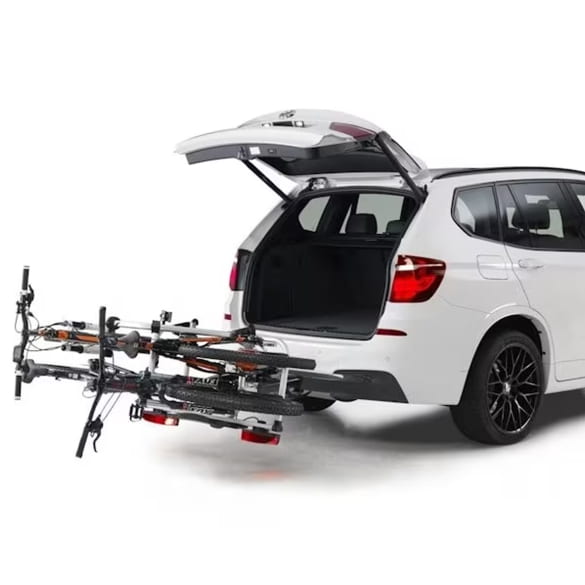

The Uebler P22S impresses with numerous sophisticated functions for maximum comfort and safety in everyday life. For maximum flexibility, it can be easily extended to three bikes with an accessory kit. Convenient folding down (up to 90°) via a large foot pedal allows access to the boot at any time, even with bikes fitted - ideal for vehicles with low-set tailgates such as the VW T5/T6 or the Mercedes V-Class. Removable spacers with one-hand operation make it easier to attach the frame, while the centred ratchet system ensures that the tyres are held securely in place. The equipment is rounded off by the sliding "Eli" LED light system with keyed alike anti-theft device.


Product details:
  • Genuine Uebler
  • Suitable for up to 2 bikes (expandable to 3)
  • Own weight: 14kg
  • Convenient operation: foot pedal for folding down
  • Can be folded away up to 90°
  • E-bike compatible
  • Removable spacers with one-hand operation
  • Keyed alike anti-theft device for bike racks and bikes
  • Not foldable
  • Made in Germany

Technical specifications

Brand: Uebler
Dimensions (packed) L x W x H: 119,00 x 77,00 x 64,00 cm
Articlenumber: 15800
Fahrradträger:
Number of bicycles 2, auf 3 erweiterbar
Suitable for e-bikes Ja
Dimensions (W x H x D) 115 x 77 x 65 cm
Weight 14 kg (15 kg mit Erweiterung)
Maximum payload (DL = drawbar load) 35 kg ab SL 50 kg / 60 kg ab SL 75 kg
Maximum load capacity of hitch carrier 60 kg (Radschienenbelastung = max. 30 kg)
Maximum centre distance of the bike 125 cm
Maximum bicycle frame diameter bis 75 mm Rundrohr oder 75 x 45 mm Ovalrohr
Lockable Ja
Carrier lockable Ja
Rail spacing 220 / 180 mm (2. zu 3. Rad)

Hazard warnings

Manufacturer/EU Responsible person Company name

Uebler GmbH

Address

Daimlerstraße 22, 91301 Forchheim, Germany

Email

info@uebler.com

Phone

+490919173620

Product information

Product-specific hazard warnings

Scope of delivery

  • 1x Uebler Bicycle carrier trailer coupling P22 S

Documents

Installation manual
